Imaging
The Vision Series delivers superior Full-HD image quality and a 200-meter communication range, surpassing traditional analog, and other nuclear imaging solutions. Built around rad-hard CMOS technology, this series is the world's first complete CMOS chipset for camera’s specifically designed for challenging nuclear environments. These chipsets are capable of enduring up to 1 MGy TID without requiring shielding. They enable lightweight, compact camera designs which further enhances their versatility, which is key to gaining operational efficiencies and reducing cost.
The MAG-IMG001X1 Full HD CMOS image sensor ensures consistent, high-quality color or grayscale images. The MAG-CXP00002 serializer efficiently converts parallel video into high-speed digital signals through a standard 75-Ohm coaxial cable, which also supports camera configuration. Furthermore, the Vision series seamlessly integrates with the Motion series to enable advanced rad-hard camera features such as lighting, pan & tilt control, and motorized lenses.
Optimized for demanding applications including inspection, machine vision, and surveillance, the Vision Series represents a significant advancement in nuclear imaging technology. To facilitate customer exploration of this cutting-edge solution, we offer the MAG-CAM1000X evaluation kit.
Functionality
The MAG-IMG001X1-NC CMOS image sensor delivers superior image quality compared to traditional analog and current nuclear cameras. Featuring a 1920x1080 pixel array (full HD) and available in both monochrome (MAG-IMG00141-NC) and color (MAG-IMG00151-NC) options, the sensor provides exceptional clarity and resolution.
It employs a rolling shutter readout, outputs raw image data through a parallel CMOS interface (3.3V), and offers 10 or 12-bit resolution. With multiple capture modes—trigger, burst, and continuous video—the MAG-IMG001X1-NC offers a flexible, high-quality imaging solution. It integrates all control and digitization functions on-chip, requiring only external supply voltages and a 20 MHz reference clock. Settings are adjustable through a SPI interface that runs up to 20 MHz.
Thanks to its radiation-hardened design, this imager is ideal for use in rad-hard cameras, providing unparalleled image quality without the need for shielding.
CMOS imager sensor with >2 Mpixel:
- 5 μm pixel size
- Electronic rolling shutter
- > 60dB dynamic range
- Mono and color version available
1920 x 1080 with a programmable frame rate up to 40 FPS in Full HD mode
Parallel CMOS 10/12b interface
- On-chip sequencer and clock generation
- Programmable integration time
- Video and trigger modes
- Sub-sampling
- Dark pixel readout option
SPI slave interface (interface with MAG-CXP00002-NP)
3.3V and 1.8V
0 to 85°C junction
The MAG-CXP00002-NP CoaXPress 2.0 ASIC delivers exceptional long-range communication capabilities, supporting cable lengths of over 200 meters using certified CXP cables. This radiation-hardened chipset is specifically designed for video transmission in harsh environments, making it ideal for scenarios where extended communication distances are critical. The standard vision protocol simplifies creation of Visualization solutions.
Supporting 1.25Gbps downlink video and 20.83Mbps uplink control over a single 75-Ohm coax cable, the MAG-CXP00002-NP also includes Power-over-Coax (PoC) functionality. It is fully compatible with commercial CXP frame grabbers, enabling streamlined integration into existing imaging workflows. Additionally, it interfaces seamlessly with the MAG-IMG001X1-NC image sensor, handling raw parallel pixel data up to 12-bit depth and supporting various frame sizes and rates.
Equipped with dual master SPI interfaces for direct communication with image sensors and peripheral devices, this ASIC is both versatile and robust. Its integrated register map bootstrapping ensures simple GenICam-compliant device management, presenting a single cohesive interface to users.
12b parallel-to-serial camera interface
Programmable frame size and pixel depth
Bidirectional:
- 1.25Gbps downlink (video data)
- 20Mbps uplink (control data)
- Single coax cable (75 Ohm; +100m)
Two SPI masters to control one imager
Compatible with COTS frame grabbers
GenICam compliant
Single 3.3 V
-40 to 125°C
The MAG-CAM1000x-N evaluation platform offers the simplest and fastest way to evaluate Magics' radiation-hardened camera technology. By integrating all the key components of the Vision series into a compact, lightweight unit, it eliminates the need for complex setups or separate component sourcing.
The platform comes with a metallized housing that includes a heat sink and a lens mount, providing a straightforward, plug-and-play approach. Connecting to power is simple, and data transfer is handled via CoaXPress (CXP), enabling high-speed, efficient operation right out of the box.
Key components include:
- MAG-IMG001X1-NC: Full HD CMOS radiation-hardened image sensor
- MAG-PSU00001-NP: Radiation-hardened DC/DC converter
- MAG-CXP00002-NP: CoaXPress serializer IC
- MAG-DRV00002-NP: Driver IC

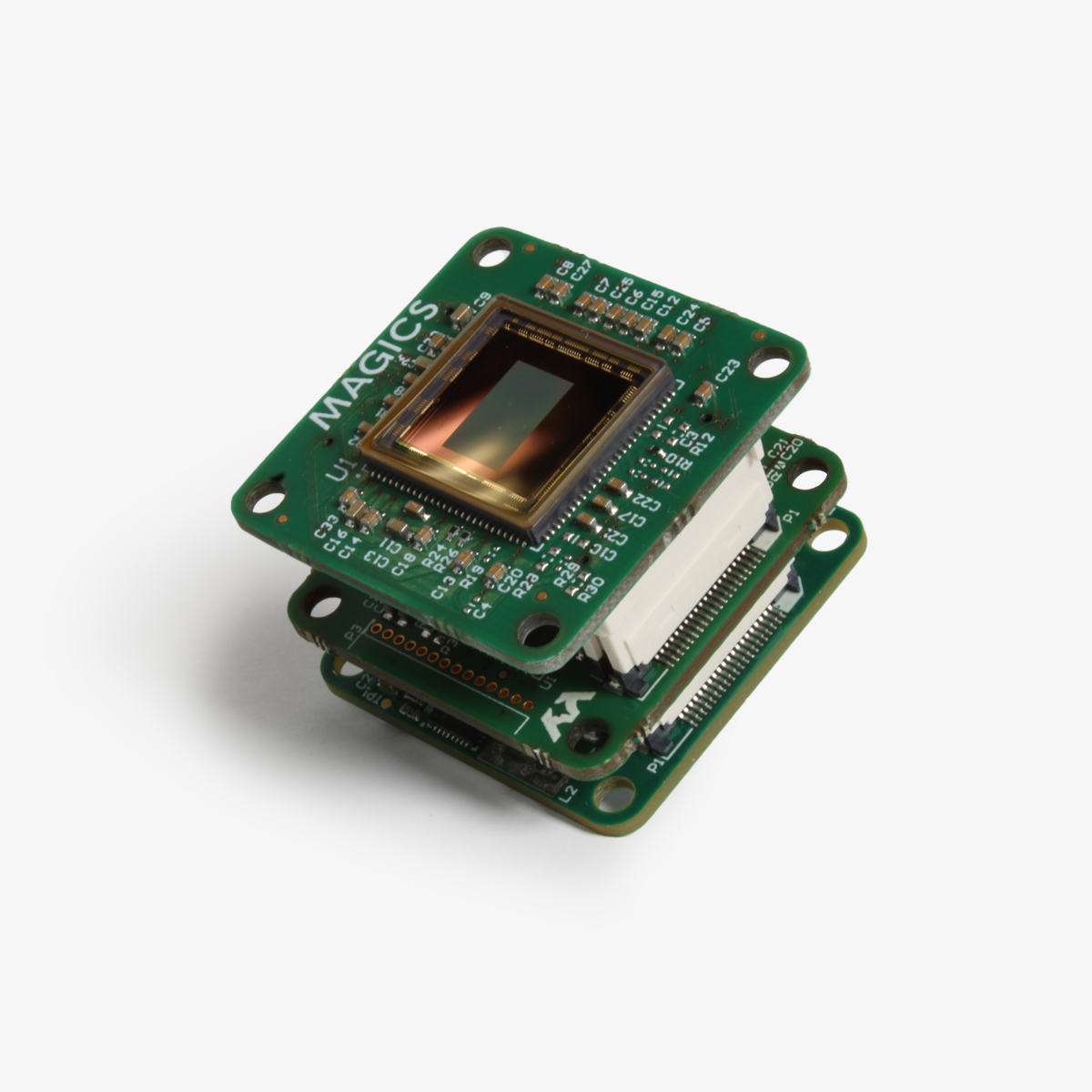

These are integrated on stacked PCBs within the housing, allowing the camera to capture Full HD images or video at up to 40 fps and transmit data over a 75-ohm coax cable.
Full HD Camera demonstrator (color or mono)
Includes:
- Camera housing + electronics
- Power supply Non-rad-hard coaxial cable included
- Non-rad-hard lens included
9V
-0 to 50°C ambient
MAG-IMG001X1-NC, MAG-CXP00002-NP, MAG-PSU00001-NP, MAG-DRV00002-NP
